5.11.1 Tracklog

Functions accessible from: 'Main menu > File > Preferences > Navigation > Tracklog'

Configure the type of track that Land will generate from your navigation:

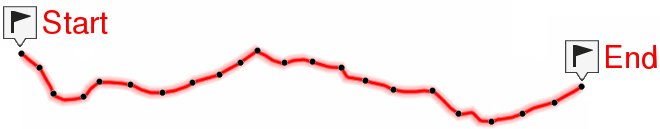

•    Recording interval:

•    By time: Set the time to create every new track point.

•    By distance: Set the distance to create every new track point.

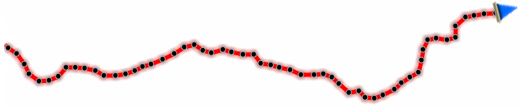

•    Automatic: Track points will be automatically recorded when changing course and depending on the speed.

•    Recovery time: When Land is suddenly switch off, if you turn the device on during the established interval, the previous data is recovered and displayed again.

•    File format: Set the track format of the resulting file.

•    Weak signal filter: If GPS signal is not reliable, points are ignored while recording track. This prevents the recording of non reliable data.

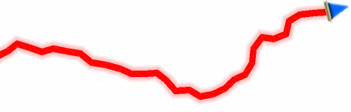

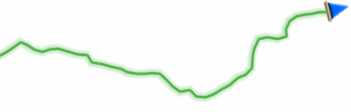

•    Track color: Set the color for the generated track.

•    Track thickness: Set the thickness for the generated track.

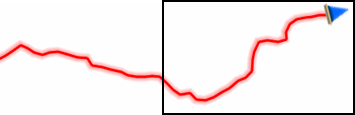

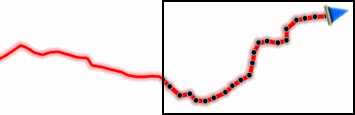

•    Points shown without reduction: Recorded track is visible at map window, but only the latest track points are shown as they are recorded (with no reduction of points). Set how long this section is.

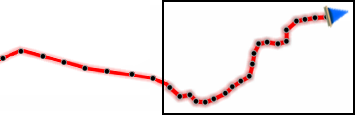

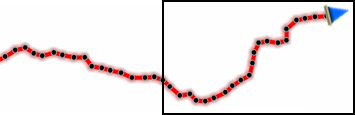

•    Reduction for previous points: It is highly recommended to make a reduction of the rest of the displayed track as well. Set a reduction to display the previous points of the recorded track (all except the latest points).
