From ‘Main menu > Status’ you can check the status of general functions of TwoNav application.

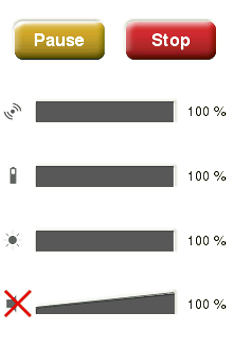

•‘Triplog’ (recording of itinerary): ‘Triplog’ is the command allowing you to manage the recording of your itinerary, your itinerary will be recorded when ‘Triplog’ is started.

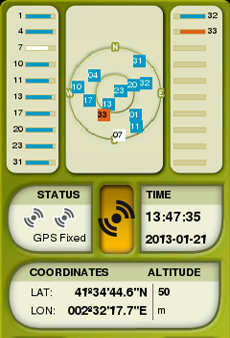

•Reception and position of satellites: Check the number of satellites available as well as their distribution orbiting over the vault and their coverage.
By default, when TwoNav is launched, it will try to connect to available satellites so that you can start working with GPS function. If GPS is disconnected, TwoNav will not receive any position signal and many application functions will stop working.
Possible states for GPS function:
|
Ò |
Disconnected |
● |
Connected (without position) |
|
● |
Connecting |
|
Connected (with position) |
|
? |
Error (not found) |
|
Connected (with position) and recording track |
|
S |
Simulating | ||
|
| |||
|
|

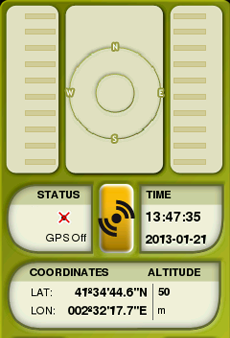

Connect/Disconnect GPS function: Press the central button to switch on/off the GPS of TwoNav. | ||
NOTE: TwoNav will attempt to fix your current position, but if you are somewhere without GPS coverage (for example: inside a building), GPS status will turn into ‘Connected (without position)’.

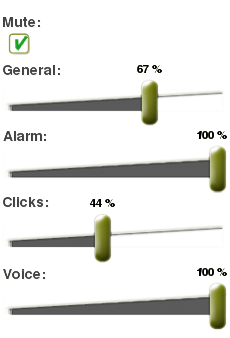

•Audio level: Set the general audio and the volume of each audible element individually.
