‘Status’ window has several buttons to control the ‘Triplog’ command during your outdoor activities, by default your itinerary will be recorded when ‘Triplog’ is started:
• Start!/Pause: Press this button to start the trip (select destination), or to pause it at any moment (data fields, recorded track and other functions are synchronized, so you will pause all counters until the trip is resumed again).
NOTE: By default, 'Triplog' function is automatically started after TwoNav is launched.
• Stop: Press this button to finish the current trip and stop 'Triplog' function.
The track of your trip is saved at ‘Tracklog’ folder. But you can directly review your recorded tracks from the list of tracks (‘Main menu > Data > Tracks > Tracklog’).
|
|
|
|
|
|
|
|

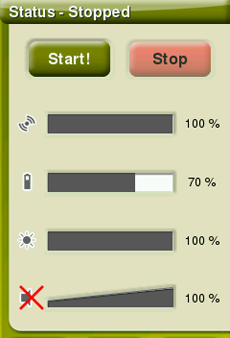

‘TIPLOG’: STOPPED |

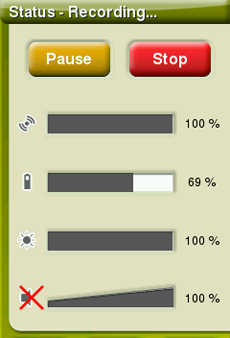

‘TRIPLOG’: RECORDING |

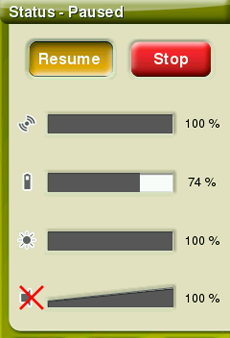

‘TRIPLOG’: PAUSED |

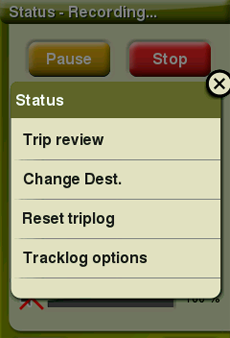

PAGE TOOLS: MORE OPTIONS |
Once the trip is started, you can press ‘Page tools’ to find out more commands to control the 'Triplog':
• Trip review: Summary of your trip up to that moment, very useful to analyse all kind of relevant data recorded during your itinerary.
• Change destination: Define a new destination for your trip, keep recording the current ‘Triplog’ or start a new one.
• Reset ‘Triplog’: Start a brand new track at this point, data fields and recorded track will be restarted again.
• ‘Tracklog’ options: Options to control 'Tracklog' function.
A security system has been added to TwoNav in order to avoid losing tracks in case you forget to start ‘Triplog’ function. If the option 'Save discarded Tracklog in trash' is enabled, when options 'Pause' or 'Finish trip' are pressed, the following movements will be automatically recorded as backup track copy inside ‘TwoNavData/Data/Tracklog/Trash’ folder.
NOTE: If you record more than one track at the same day, file’s names will be distinguished by a number at the end of the file name. This number identifies the order in which the tracks were created (for example: ‘2008-12-15-01.TRK’, ‘2008-12-15-02.TRK’…).
