8.2.10 3D

TwoNav offers three visualizing modes so you have the most adequate perspective in each moment.

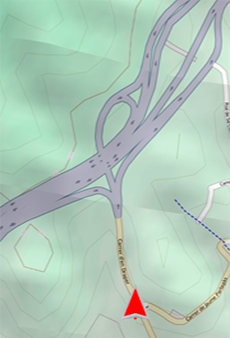

•   ‘2D’ mode: Zenith plan.

•   ‘3D’ mode: Trimensional flat image with a perspective.

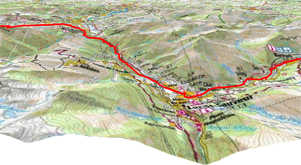

•   ‘3D+’ mode: Holography of the terrain in real 3D (vectorial maps will not be displayed in 3D+). This mode can only be displayed if you load:

•     3D relief map (*.CDEM)

•     Raster map (normally *.RMAP or *.ECW)

•     ‘3D’ mode: Choose the sequence for ‘2D > 3D > 3D+’ button:

•     ‘2D > 3D+’ (if raster map): 2 positions (2D > 3D flat/3D+). TwoNav will try to show 3D+. If not possible, 3D flat will be shown.

•     ‘2D > 3D > 3D+’: 3 positions (2D > 3D flat > 3D+)

•     Map 2D/3D: Choose the visualizing mode that TwoNav will use to display maps at main window:

•     ‘2D’

•     ‘3D’ flat

•     ‘3D’ with relief

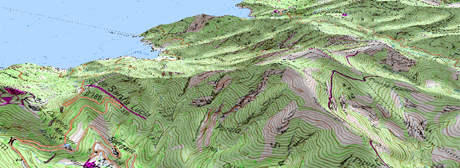

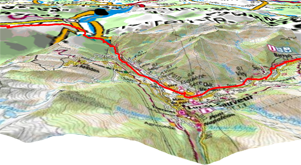

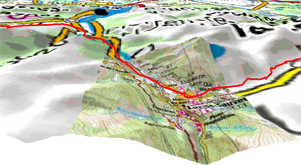

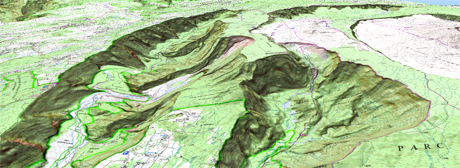

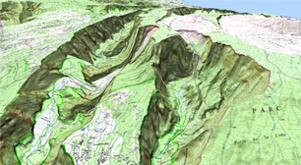

•     Altitude exaggeration: Multiplies the altitude of the relief to make a clearer effect in 3D+.

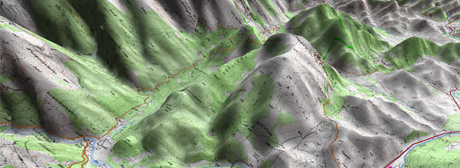

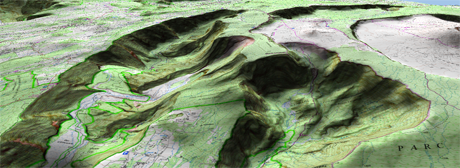

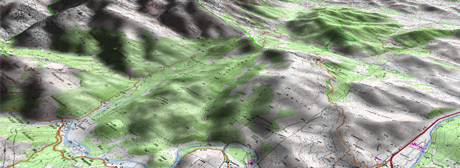

•     Shading: Relief will be displayed in a clearer and attractive way, as it features shadow simulations enhancing thus the variations of the ground. This option is only effective on the 3D+.

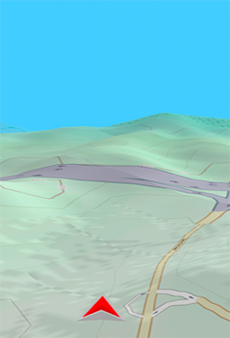

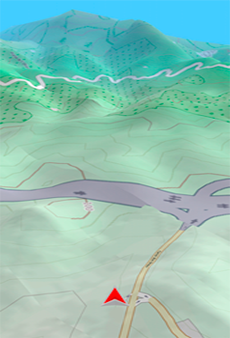

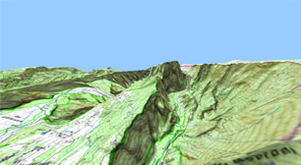

•     Field of vision: Determines the angle from which the map will be seen. When introducing angles over 60º, it will simulate a camera with wide lenses.

•     Automatic inclination: Map perspective will change in real time depending on device's inclination. In order to use this function, 3D+ has to be enabled.

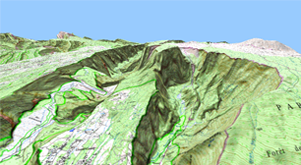

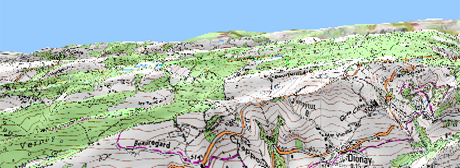

•     Foggy horizon: The furthest part to the perspective becomes faded, creating a misty effect between the sky and the map that helps to distinguish them more clearly.

•     3D quality: Customize the depth of the 3D quality from a list of different degrees.

•     Maximum tiles to show: Set the maximum number of map tiles to display (the higher number of tiles displayed, the slower will load).

•     Sea level: Fix the current value of the sea level to represent situations where the height is under the sea level.
