4.4.1   Operations on Routes

Advanced operations that can be perfomed on routes:

•    Name filter: Filter your routes by entering a combination of characters. Only items containing such letter combination will be displayed.

•    Sort by: Sort your routes using a reference. All elements will be rearranged from highest to lowest according to that reference.

•    My on-line routes: Access to private servers where you can store or download your own routes (OS Maps, GO cloud, IGN Rando, Suunto Moves...). Only you can access these accounts as they are linked to your account.

•    Discover on-line routes: Access to public servers where you can download routes provided by suppliers and specialized websites (FFCT, GPSies, TraceGPS, LaTrace, Utagawa...). Any user can access these servers and download routes.

•    Change the order of the waypoints in a route: In order to change the order of the waypoints of a route, open the contextual menu on the waypoint that you want to move and select ‘Move up’ or ‘Move down’.

•    Modifiy for all waypoints in a route: If any of these properties is modified, it will be applied for all waypoints at the same time.

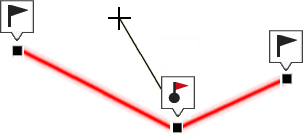

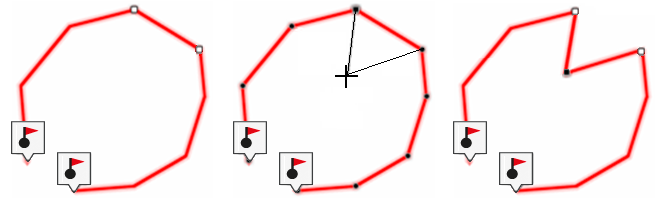

•    Move the location of a point on a route:

1.   In the map window, open the 'Pin' mode by long pressing the track you want to edit.

2.   Press 'More options> Edit track'.

3.   Locate the track point you want to move.

4.   Drag and drop the track point from your current position to the exact point where you want to place it.

5.   When you have finished the edition, click 'Close edition'.

•    Insert intermediate track points to a route:

1.   In the map window, open the 'Pin' mode by long pressing the track you want to edit.

2.   Press 'More options> Edit track'.

3.   Select the track point after which you want to add a brand new point.

4.   Tap the exact location where you want to create the new track point.

5.   When you have finished the edition, click 'Close edition'.

•    Delete a track point from a route:

1.   In the map window, open the 'Pin' mode by long pressing the track you want to edit.

2.   Press 'More options> Edit track'.

3.   Select the point you want to delete and press 'More options > Delete point'.

4.   The two adjacent track points will meet in a straight line (this straight line will not contain any track points).

5.   When you have finished the edition, click 'Close edition'.

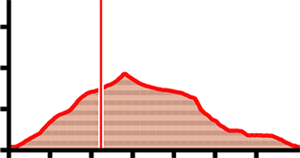

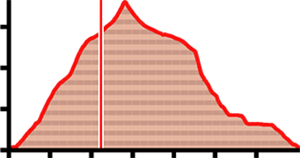

•    Graph representation of routes: Display a graph representation of your route, just enter the properties of the element and press the button ‘Graph representation’. These are the available functions on graphs:

•    Guiding Y axis: Bar serving as moving axis.

•    Changing data fields on the Y-axis: Click on the Y-axis to change its default data field and select a new field for this axis (altitude, speed, heart rate, cadence...).

•    Moving graph: Use ‘Zoom’ buttons to sections of the graph with more detailed precision (graph scrolling can also be applied by dragging the graph up and down as well as laterally).

•    Automatic re-center: Press ‘Re-center’ button to automatically re-center the graph.

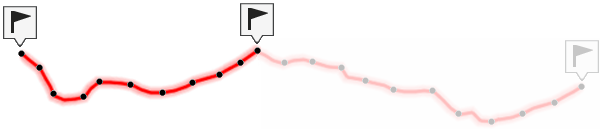

•    Create separate laps on an existing route: You may split the route in several laps by opening the contextual menu on the point that divides the two selected laps and select ‘Laps > Change lap here’. At this moment, the lap closer to the end of the route will change color to highlight the difference between the two lap.

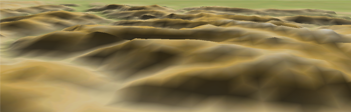

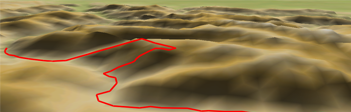

•    Import altitudes: If you have a 3D relief map loaded (*.CDEM file), your device will assign to each point of the route its altitude considering the information of the loaded relief map.

•    Delete stopped points start/end: Route will omit the repetitive points from the beginning and the end where you stopped before and after making the route.

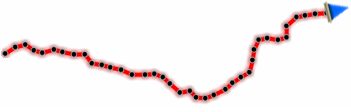

•    Reduce the number of points: Route will be drawn by keeping the shape of the original route but according to the number of points that you introduce.

•    Assign time/speed to route points: Determine a time for departure and a constant speed so that your device will calculate the estimated time of arrival for each point in the route.

•    Delete aberrant points: Points deviating excessively from the route will be considered errors, and so deleted.

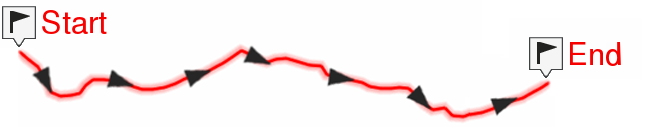

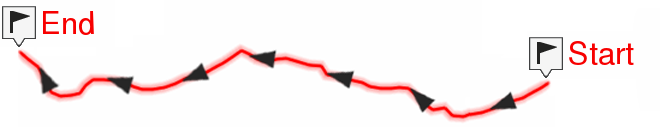

•    Invert route: In order to display a route in the opposite sense to the default one (the begining at the end and vicecersa), open the contextual menu of the route and select ‘Tools > Reverse the route’.

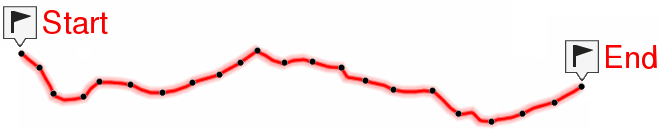

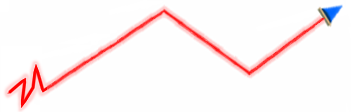

•    Convert TRK to RTE: In order to change a TRK into a RTE, open the contextual menu of the route and press ‘Tools > Convert TRK to RTE’.

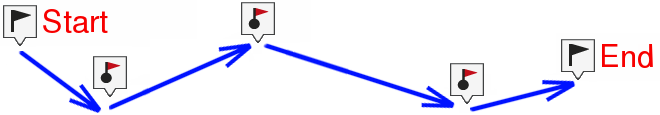

•    Convert RTE to TRK: In order to change a RTE into a TRK, open the contextual menu of the route and press ‘Tools > Convert RTE to TRK’.
