3.1.2   Tool mode

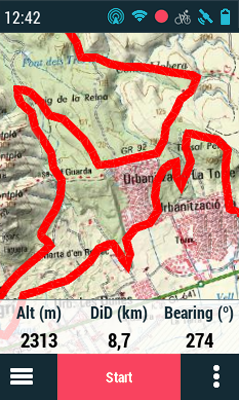

‘DATA’ MODE

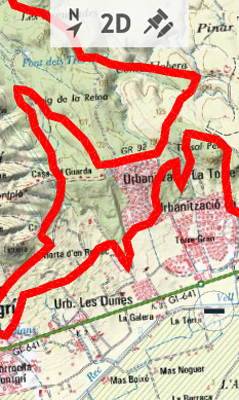

‘TOOL’ MODE



Default functions



In order to access to the ‘Tool’ mode, do a short tap on any place of the map. Press any part of the map again to hide the ‘Tool’ mode and return to 'Data' mode. ‘Tool’ mode allows a quick access to some functions:





     Orient map (north up/track up): The map may be fixed on the north or rotate according to your movements.



     2D/3D/3D+: Switch between different map perspectives: ‘2D > 3D > 3D+’.











2D FLAT

3D FLAT

3D+ RELIEF

RELIEF MAP



     Mark and edit waypoint: Create a waypoint at current position and access to its properties to modify them.



Additional functions



Extra buttons are automatically added to tool bar in specific situations:





     Navigating mode: ‘Next waypoint’ and ‘Previous waypoint’ to jump to next waypoint or go back to the previous one.





     Competing against the TrackAttack: ‘Synchronize TrackAttack’ to automatically place the ‘TrackAttack’ at your current position (only if ‘TrackAttack’ function is enabled).



NOTE: You can also include and remove the functions of the tool bar according to your needs from ‘Main menu > Settings > Activity profiles > Map view > Tool bar’.
